Essential Knowledge of RF Connectors: Advantages and Applications of the MCX Connector

 What is an MCX Connector?

An MCX (Micro Coaxial) connector is a type of RF (Radio Frequency) connector that is designed for high-frequency signal transmission in compact spaces. It is widely used in applications where space constraints are critical, such as wireless communication, GPS devices, and portable electronics. The MCX connector features a snap-on coupling mechanism, making it easy to connect and disconnect without the need for additional tools. Kinghelm's MCX connectors are designed to meet these needs, providing exceptional performance and reliability in tight spaces.



MCX/MMCX Connector, MMCX Right-Angle Plug (three-piece set), KH-MCX-K506-Z

Its small size, typically with a 3.5mm diameter, makes it ideal for devices that require miniaturized connections, such as mobile phones and IoT devices. One key feature of the MCX connector is its ability to support frequencies up to 6 GHz, making it suitable for various RF applications. Compared to other RF connectors like SMA or TNC, the MCX offers a more compact design, making it preferable for low-profile and high-density environments. Additionally, Kinghelm's MCX connectors ensure a stable connection, with excellent signal integrity, making them a reliable choice for both industrial and consumer electronics.

While it may not handle the high-power requirements of other connectors, its small size and ease of use make it a popular choice for low-power applications, such as those found in mobile and portable devices.

Structure and Working Principle of the MCX Connector
The MCX connector consists of several key components that enable reliable signal transmission in RF communication systems. It includes a central pin (male or female) that transmits the RF signal, surrounded by a dielectric material that insulates the signal. The connector also features an outer conductor, typically made of metal, which provides shielding to protect the signal from external interference. The snap-on coupling mechanism ensures a secure connection, making it easy to install and disconnect without compromising performance.

In terms of operation, the MCX connector relies on the principle of impedance matching, which is crucial for minimizing signal loss and reflection. The connector is designed to maintain a consistent impedance, usually 50 ohms, throughout the RF path. When properly connected, the MCX connector forms a low-resistance path for the signal, ensuring minimal attenuation and preserving the integrity of the high-frequency signal. This makes it ideal for applications where signal clarity and consistency are critical, such as wireless communication, GPS systems, and broadcasting equipment.

The simplicity and efficiency of the MCX connector’s structure contribute to its widespread use in compact devices and systems, where performance and size are both essential.

Advantages of the MCX Connector
The MCX connector offers several key advantages that make it a preferred choice for high-performance RF applications. One of its main benefits is its compact size, which allows for easy integration into space-constrained devices like portable electronics, GPS systems, and wireless communication equipment. The small form factor of the MCX connector ensures it can be used in environments where space is at a premium, without compromising on performance. Kinghelm's MCX connectors are designed with these needs in mind, offering an ideal solution for compact devices that require reliable and efficient signal transmission.



MCX/MMCX Connector, Board-End, 6GHz, 50Ω, KH-MMCX-KE-STM

Another significant advantage is its high-frequency support, with the MCX connector capable of operating at frequencies up to 6 GHz. This makes it suitable for a wide range of applications, from consumer electronics to industrial and telecommunications systems, where high-frequency signal transmission is essential for reliable communication. Kinghelm's MCX connectors are engineered to meet these high-frequency requirements, ensuring consistent and clear signal delivery across a variety of systems.

The stability and reliability of the MCX connector are also noteworthy. Thanks to its solid construction and secure snap-on coupling mechanism, the MCX connector ensures a stable, low-resistance connection that minimizes signal loss and interference. Kinghelm's MCX connectors provide the durability and performance needed in demanding RF environments, ensuring long-lasting, high-quality signal integrity in both consumer and industrial applications.

Common Applications of the MCX Connector
MCX connectors are widely used across various industries due to their compact design, high-frequency capabilities, and reliability. In telecommunications, MCX connectors are essential for ensuring stable and efficient signal transmission in devices like wireless routers, base stations, and mobile communication systems. Their ability to handle high-frequency signals makes them ideal for 4G, 5G, and Wi-Fi networks, where performance and reliability are critical. Kinghelm's MCX connectors are engineered to meet the demanding requirements of these systems, offering a stable connection and exceptional signal integrity.

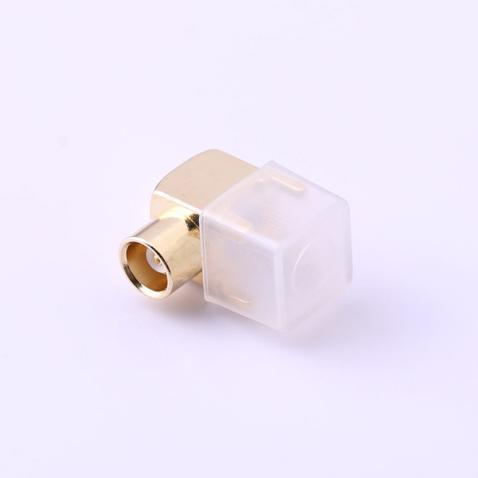

MCX/MMCX Connector, MCX Jack Edge Mount PCB Receptacle, KH-MCX-KWE-W

In the medical device industry, MCX connectors are used in applications that require precision and signal integrity, such as in diagnostic equipment, medical imaging systems, and wearable health devices. The small form factor of MCX connectors allows these to be integrated into compact medical devices without sacrificing performance or stability. Kinghelm's MCX connectors provide the necessary precision and reliability required for sensitive medical applications.

The automotive electronics sector also benefits from MCX connectors, especially in advanced driver-assistance systems (ADAS), GPS navigation, and in-vehicle communication systems. With the increasing demand for connected vehicles, MCX connectors provide the necessary stability and high-frequency performance for seamless communication between components. Kinghelm's MCX connectors are ideal for these high-performance, high-demand automotive applications.

Other industries, such as aerospace, IoT, and consumer electronics, also rely on MCX connectors for their versatile, high-performance capabilities in a wide range of applications. Kinghelm's MCX connectors are designed to meet the unique needs of each industry, ensuring optimal signal transmission and durability.

How to Choose the Right MCX Connector
selecting the right MCX connector requires careful consideration of several key factors to ensure optimal performance in your application. One of the most important aspects is frequency range. MCX connectors typically support frequencies up to 6 GHz, but it's essential to match the connector's frequency capability with your system's specific requirements to avoid signal loss and ensure reliable transmission.

Impedance matching is another critical factor. Most MCX connectors are designed with an impedance of 50 ohms, which is the standard for most RF applications. However, some applications may require a different impedance for proper signal integrity, so it's crucial to select a connector that matches your system's impedance to minimize reflection and signal degradation.

Environmental adaptability should also be taken into account. MCX connectors are used in a wide range of environments, from industrial to medical and automotive applications. Depending on the operating conditions—such as temperature extremes, exposure to moisture, or vibration—you may need a connector with specific environmental seals, corrosion resistance, or ruggedized features to ensure durability and long-term performance.

By carefully considering these factors—frequency range, impedance matching, and environmental adaptability—you can select the MCX connector that best fits your needs for reliable, high-performance RF communication.

Installation and Maintenance of MCX Connectors
Proper installation and maintenance of MCX connectors are essential to ensure their long-term reliability and optimal performance in RF communication systems. When installing MCX connectors, it's crucial to ensure a secure, low-resistance connection. For a snap-on connector, make sure the connector is firmly clicked into place, avoiding any loose connections that could lead to signal degradation or intermittent performance. For solder-type connectors, proper soldering techniques should be used to avoid damage to the pin or PCB, ensuring a clean, solid electrical connection.

In addition to proper installation, regular maintenance is necessary to maintain the performance of MCX connectors, especially in harsh environments. It’s important to periodically inspect connectors for signs of wear, corrosion, or debris buildup, which could interfere with the signal or cause a poor connection. Cleaning MCX connectors with a lint-free cloth and suitable contact cleaner can help maintain signal integrity. If the connectors are exposed to harsh conditions like moisture or high temperatures, it’s recommended to use connectors with additional sealing or protective coatings to extend their lifespan.

By following these installation and maintenance guidelines, you can ensure that your MCX connectors deliver consistent, reliable performance over time, even in demanding applications.

Future Trends and Developments of the MCX Connector
As technology continues to evolve, the role of the MCX connector in emerging industries is becoming increasingly important. With the widespread adoption of 5G networks, MCX connectors are expected to play a crucial role in ensuring high-speed, high-frequency signal transmission for a range of applications, from mobile devices to infrastructure. The small size and high-frequency capabilities of the MCX connector make it an ideal choice for 5G equipment, where space is limited, and reliable signal integrity is essential.

Another area where MCX connectors are expected to see significant growth is the Internet of Things (IoT). As the number of connected devices expands, MCX connectors will be integral to maintaining stable and efficient communication between sensors, gateways, and other IoT components. Their compact design and ability to handle high-frequency signals make them perfect for small, low-power devices used in smart homes, wearables, and industrial IoT applications.

Additionally, advancements in miniaturization and environmental adaptability will drive further innovations in MCX connectors, enabling them to meet the demands of next-generation wireless technologies, autonomous systems, and other emerging applications. As these trends continue to develop, MCX connectors will remain a key component in driving innovation in both consumer and industrial sectors.
