Kinghelm HDMI Connector KH-HDMI-0035-XK: Guide and Applications

 HDMI connectors are essential components in today’s electronics, enabling seamless transmission of high-definition audio and video signals. From home entertainment systems to professional conference setups and industrial displays, these connectors ensure reliable connectivity. Understanding how to use HDMI connectors effectively, along with their diverse applications, can optimize device performance and longevity. This article delves into the practical usage of HDMI connectors and highlights the capabilities of Kinghelm’s KH-HDMI-0035-XK, a high-performance connector designed for superior signal transmission across various scenarios.

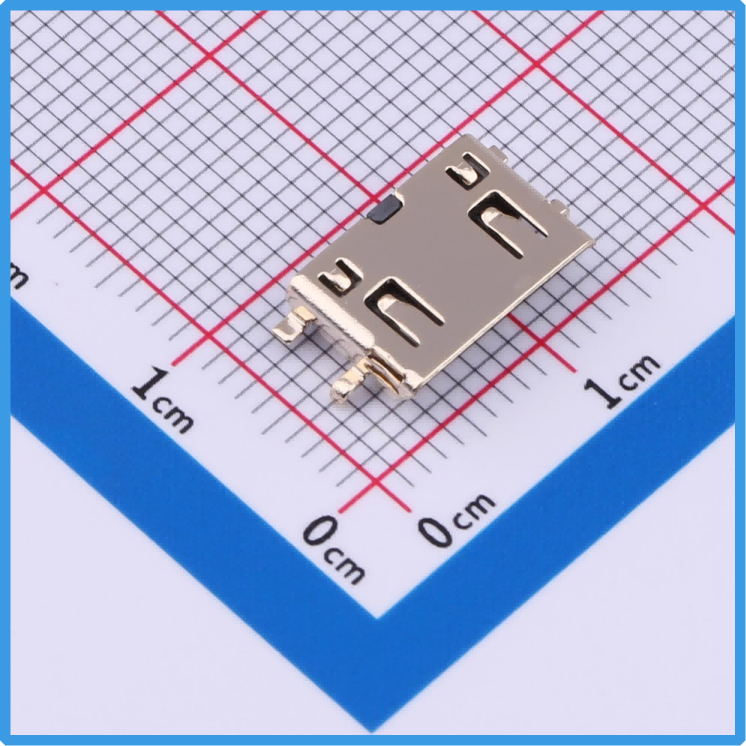

Kinghelm KH-HDMI-0035-XK Product Image

Using an HDMI connector is straightforward, but attention to detail is key. First, verify that the device’s HDMI version matches the connector’s specifications. HDMI standards have evolved from 1.0, supporting 720p, to 2.1, handling 8K. The KH-HDMI-0035-XK supports HDMI standards, delivering 4K@60Hz with an 18Gbps bandwidth, ideal for high-definition displays. During connection, align the plug with the port and insert gently to avoid damaging the pins. When disconnecting, hold the plug, not the cable, to minimize wear. Regular maintenance involves checking for dust or corrosion and cleaning with compressed air or a non-alcohol wipe. The KH-HDMI-0035-XK’s copper gold-plated terminals, with a contact resistance of 30mΩ maximum, enhance conductivity and resist oxidation, reducing maintenance needs.

For installation, particularly in manufacturing, the KH-HDMI-0035-XK’s Surface-Mount Device (SMD) design and reel packaging are highly practical. SMD allows direct soldering onto PCBs, streamlining automated production. Reel packaging ensures efficient transport and storage, with each unit weighing only 0.91 grams. During installation, ensure the PCB’s sink design aligns with the connector’s 1.6mm thickness, and maintain soldering temperatures within the -20°C to 85°C operating range to prevent damage. The connector’s 19-pin HDMI-C layout ensures compatibility with most devices, making it a versatile choice for various applications.

HDMI connectors shine in home entertainment. The KH-HDMI-0035-XK connects 4K TVs to Blu-ray players, delivering lossless video and synchronized audio for immersive viewing. Its 0.5A current rating and 40V voltage rating ensure stable power delivery, preventing signal drops. With 100MΩ minimum insulation resistance and 500V AC/minute dielectric strength, it guarantees safe, long-term use. For home setups, use HDMI cables under 5 meters to avoid signal degradation.

In office environments, HDMI connectors are vital for multimedia systems. The KH-HDMI-0035-XK links projectors or large displays to laptops, supporting crisp presentations. Its multi-channel audio support, including Dolby TrueHD, enhances video playback. The sunken design ensures secure mounting, resisting loosening from frequent plugging. The gold-plated terminals maintain signal integrity even after repeated use, ideal for high-traffic office settings.

Industrial applications demand robust connectors. The KH-HDMI-0035-XK excels in machine vision systems, transmitting high-resolution images for real-time quality monitoring. Its 4K support ensures detailed visuals, critical for accurate inspections. The -20°C to 85°C temperature range suits diverse factory conditions, and its terminals withstand 5000 insertion cycles. With a maximum insertion force of 44.1N and extraction force of 7-25N, it resists vibration, making it suitable for mobile equipment or automation lines.

In medical equipment, reliability is paramount. The KH-HDMI-0035-XK supports high-definition imaging in ultrasound or endoscopic systems, ensuring lag-free visuals for accurate diagnostics. Its insulation and voltage ratings prevent electromagnetic interference, critical for sensitive environments. The lightweight 0.91-gram design aids integration into portable devices, and reel packaging streamlines production. Gold-plated terminals resist corrosion, maintaining performance in humid conditions.

In education, HDMI connectors enhance smart classrooms. The KH-HDMI-0035-XK connects interactive whiteboards or projectors to teaching computers, supporting high-definition content. Its HDMI-C compatibility works with various devices, and low contact resistance ensures stable signals, avoiding disruptions. The SMD design and lightweight construction facilitate large-scale deployments in schools.

For professional audio-video production, the KH-HDMI-0035-XK connects monitors to workstations for real-time 4K previews. Its synchronized audio supports uncompressed multi-channel sound, meeting mixing demands. The 500V AC/minute rating ensures safety during high-load operations. Kinghelm’s reputation for quality makes this connector a trusted choice for professionals.

Maintenance is critical for HDMI connectors. Check for loose connections or debris quarterly, and avoid high-humidity storage. The KH-HDMI-0035-XK’s gold-plated terminals resist corrosion, but quality HDMI cables are recommended to prevent signal loss. Proper soldering ensures reliable connections. Kinghelm’s detailed datasheets, including pin and PCB layouts, guide engineers through installation.

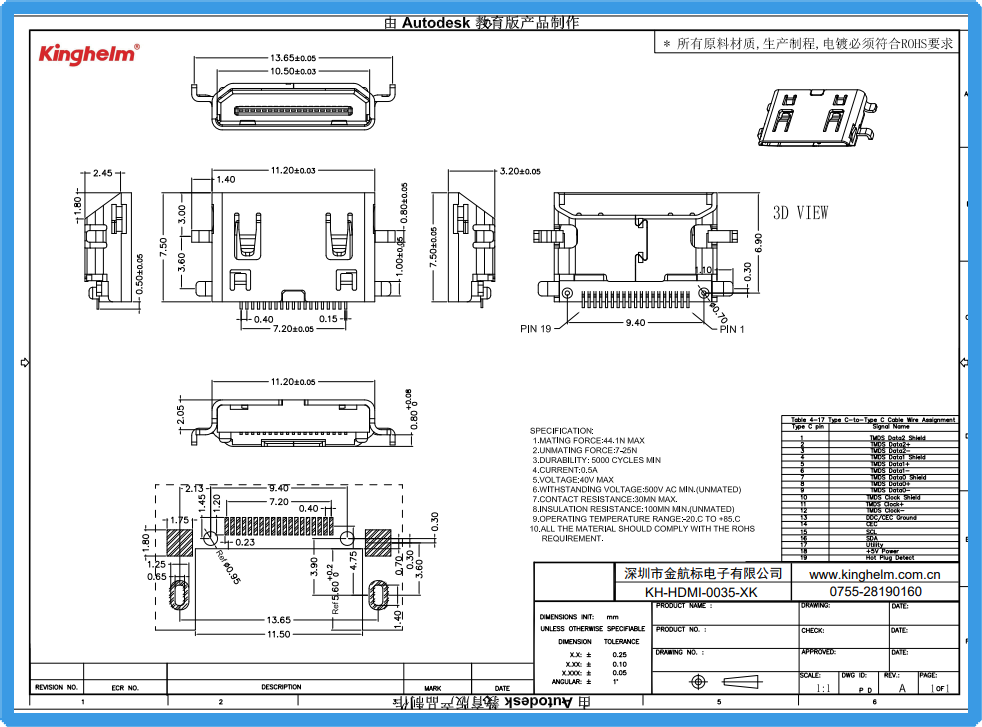

Kinghelm KH-HDMI-0035-XK Specification

Looking forward, HDMI connectors will support 8K, VR, and AR with higher bandwidths. The KH-HDMI-0035-XK’s reliable design prepares it for future upgrades. Its lightweight, SMD-compatible structure suits IoT devices, from smart home cameras to automotive displays. By ensuring proper use and maintenance, this connector delivers lasting performance across industries.
